Description
Portable Multi-parameter Patient Monitor is adaptable to adult, pediatric and neonatal usage.
It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP.Monitored date can be displayed, reviewed, stored and printed.

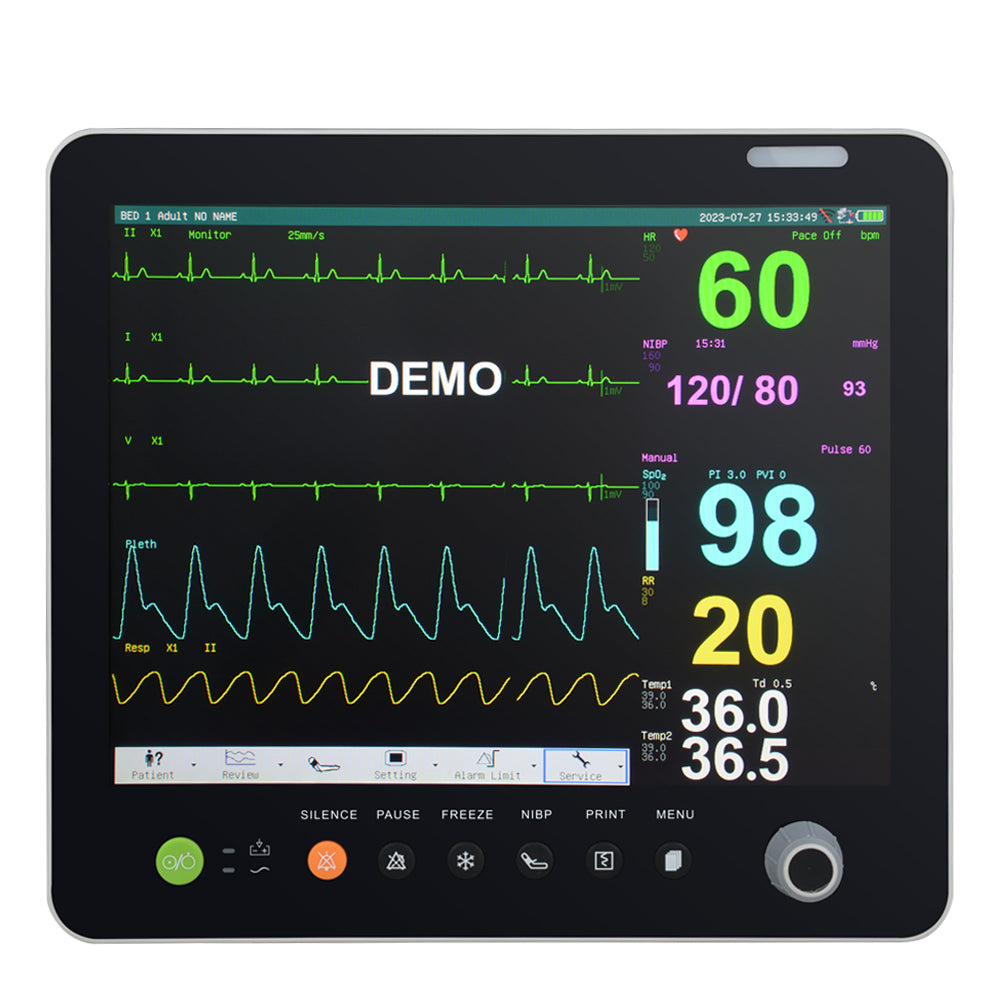

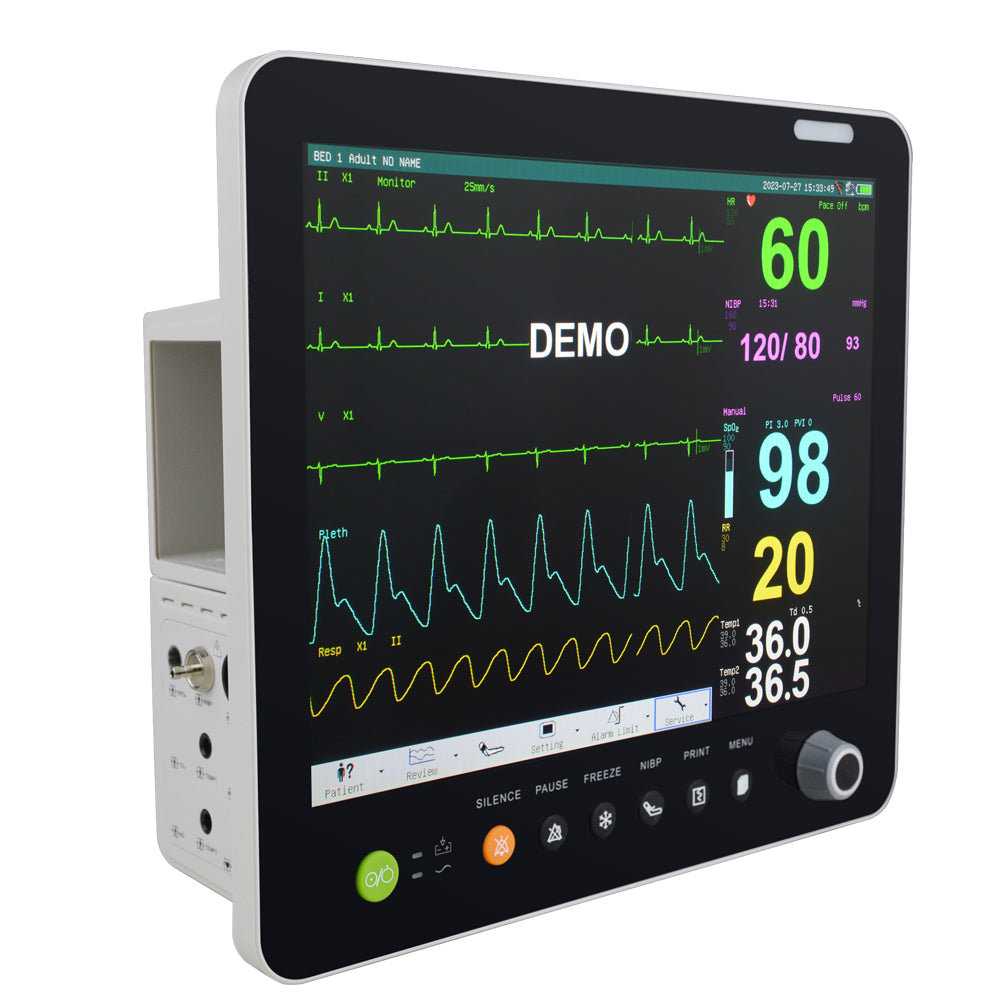

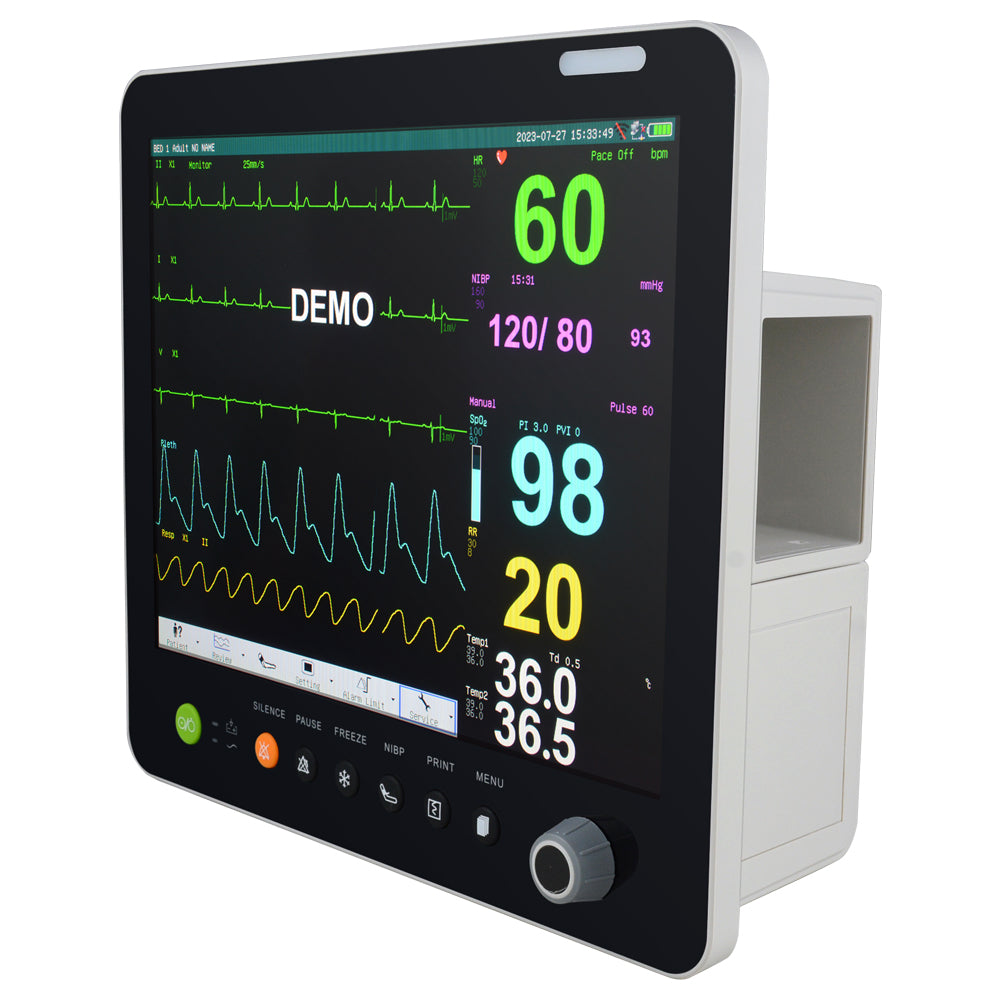

15.1" high resolution color TFT LCD touch screen,easy and convenient to operate.
Modular design,the modules can be configured and combined flexibly and conveniently, meets the requirements of different departments on different parameters.
PVI (Pleth Variability Index)
USB support PDF file export.
Central station support Nurse Call by wire/wireless network.
16 languages include: English, French, German, Spanish, Portuguese etc.
720 hours trend data and 12 hours of all waveforms.
Widely used in the Department of internal medicine,operation room,obstetrics and Gynecology, pediatrics, emergency center,ICU,CCU.
Standard parameters:ECG, RESP, NIBP, SPO2, TEMP, PR.
Optional:Dual IBP , CO2 , CSM module , Gas
ECG
Lead mode:5 Leads, I, II, III, AVR, AVL, AVF, V
Gain:0.25, ´0.5, ´1, ´2
Heart rate:
Adult:15 ~ 300 bpm
Neonatal/Pediatric:15 ~ 350 bpm
Accuracy:1%
Resolution:1 bpm
Sensitivity:> 200 μV P-P
Differential Input Impedance:> 5 M ohm
Electrode offset potential:300mV
Leakage Current:< 10 μA
PACE pulse detect
Range:±2～±700mV
Width:0.1～2ms
rise time:10～100µs
PACE pulse rejection
Range:±2～±700mV
Width:0.1～2ms
rise time:10～100µs
ST measurement
Range;-2.0 ~ +2.0 mV
Accuracy:-0.8mV～+0.8mV:
±0.02mV or ±10%, which is greater
Respiration
Method:Impedance between RA-LL or RA-LA
Differential Input Impedance:>2.5 M ohm
Respiration Impedance Range:0.3~3Ω
Base Impedance Range:200Ω-2000Ω
Bandwidth:0.3 ~ 2 Hz
Gain:×0.25,×0.500,×1,×2,×4
Respiration Rate
Measurement Range
Adult:0 ~ 120 BrPM
Neonatal / Pediatric: 0 ~ 150 BrPM
Resolution: 1 BrPM
Accuracy
0～6 BrPM: unspecified
7～150 BrPM: ±2 BrPM or ±2%, the greater
Inspiriting current:< 300 µA RMS max
Apnea Alarm:10 ~ 40 s
Temperature
Channel:1
Measure and Alarm Range:0 ~ 50 °C
Resolution:0.1°C
Accuracy:± 0.2℃
NIBP
Pulse Rate Range:40 ~ 240 bpm
Measure and Alarm Range
Adult Mode
SYS:40 ~ 280 mmHg
DIA:10 ~ 220 mmHg
MEAN:20 ~ 240 mmHg
Pediatric Mode
SYS:40 ~ 220 mmHg
DIA :0 ~ 160 mmHg
MEAN:20 ~ 170 mmHg
Neonatal Mode
SYS:35 ~ 135 mmHg
DIA:10 ~ 100 mmHg
MEAN:20 ~ 110 mmHg
Static pressure accuracy:3mmHg
Resolution:1mmHg
Accuracy
Maximum Mean error:5mmHg
Maximum Standard deviation:8mmHg
Over pressure Protection
Adult:300 mmHg
Pediatric:240 mmHg
Neonatal:150 mmHg
SpO2
Measurement Range:0 ~ 100 %
Resolution:1 %
Accuracy
2 % for 70% ~ 100%
0% ~ 69% unspecified
Pulse Rate
Measure and Alarm Range:20~250bpm
Resolution:1bpm
Accuracy:3bpm
