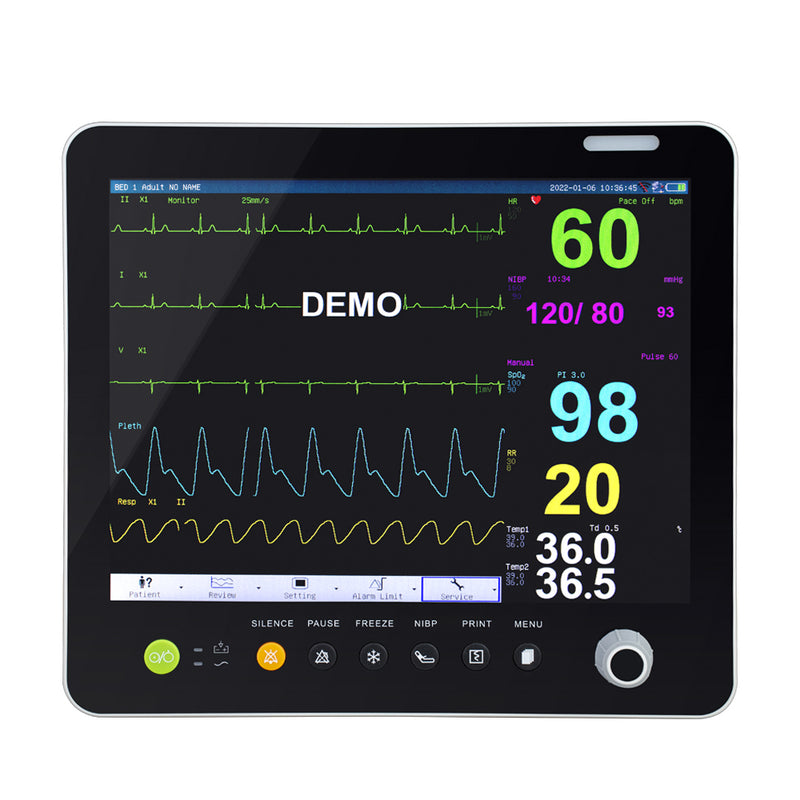

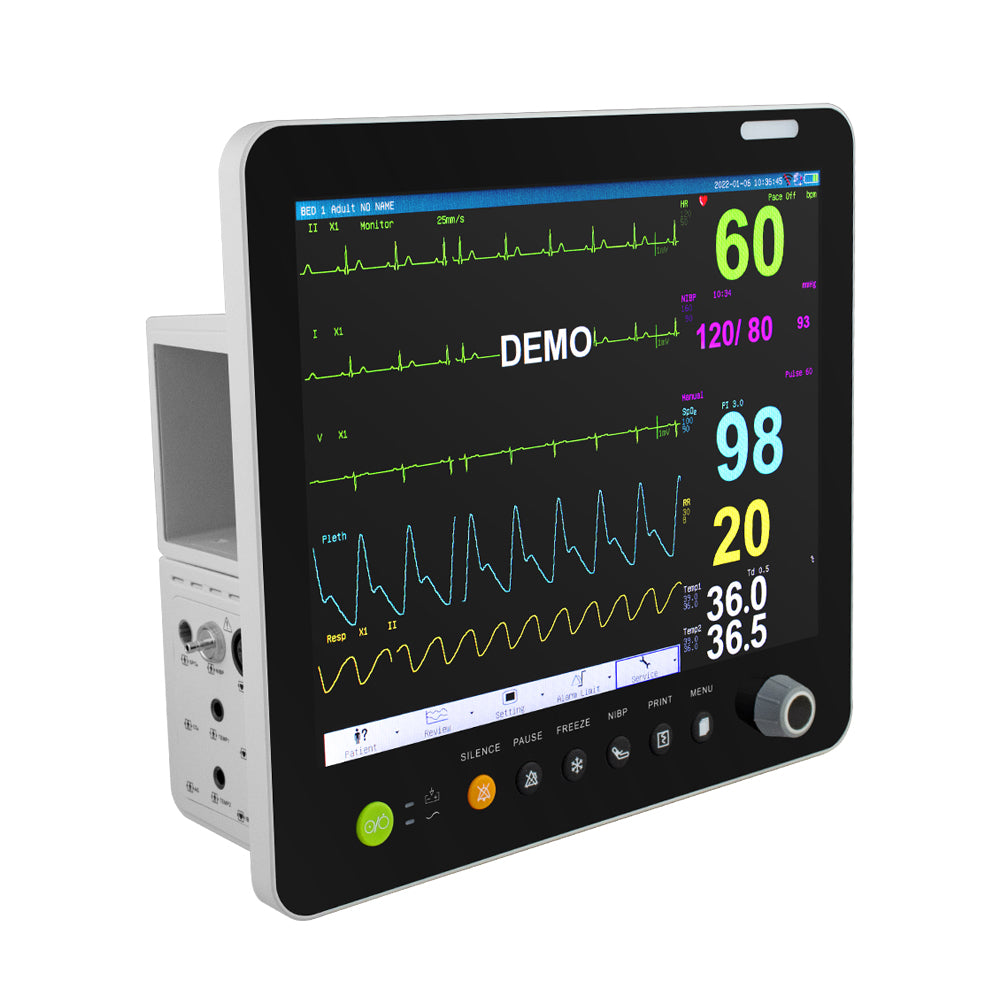

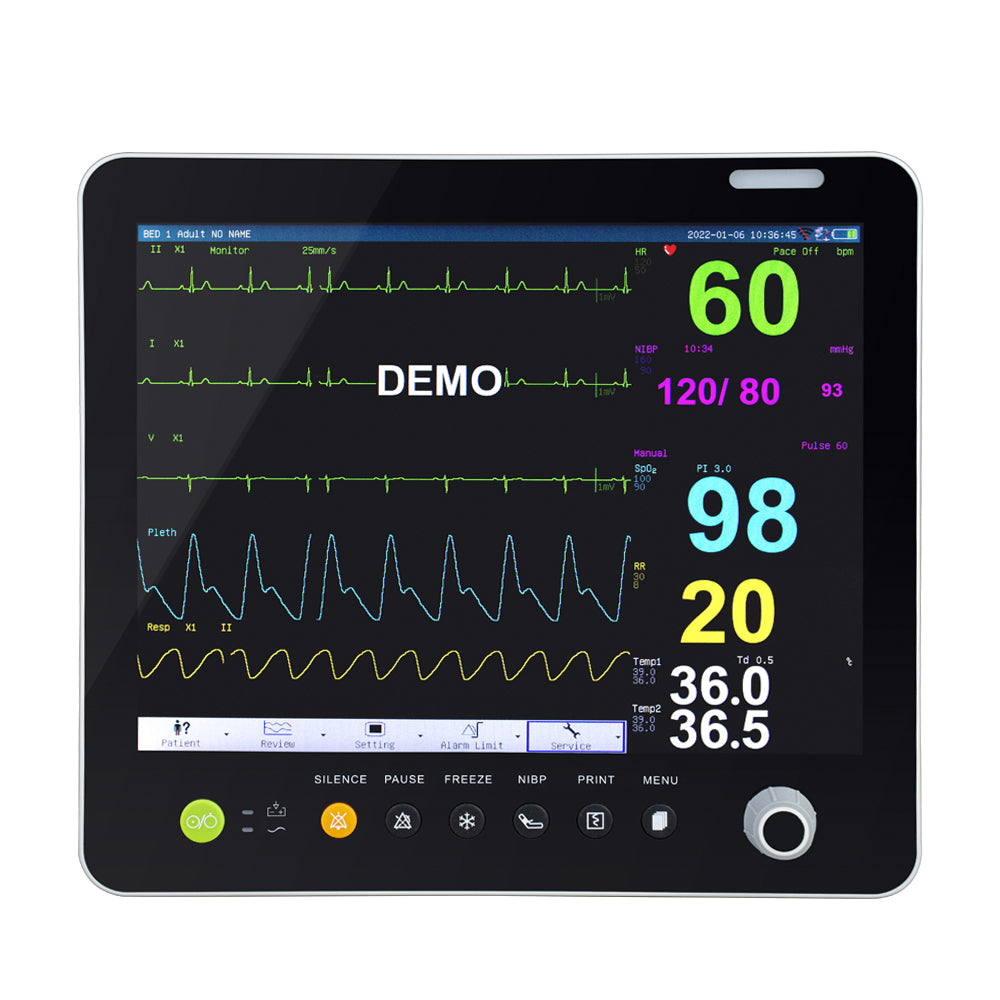

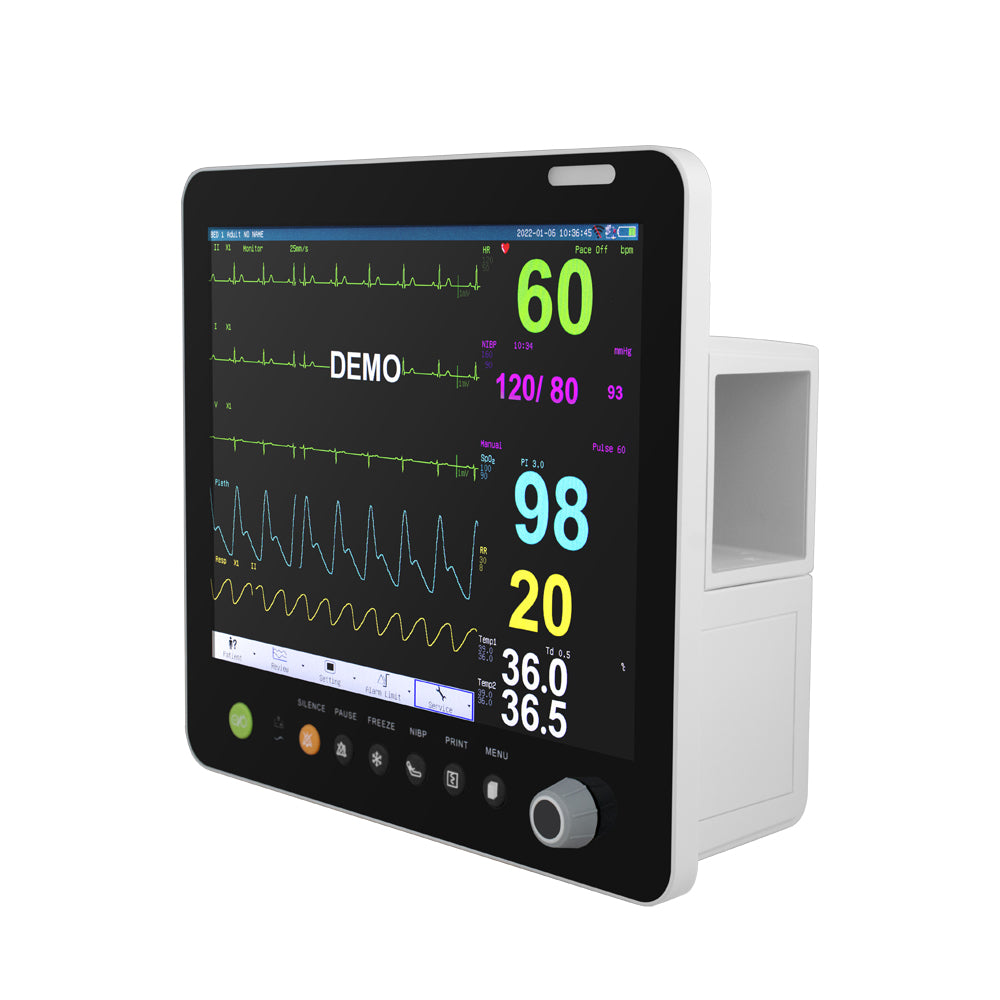

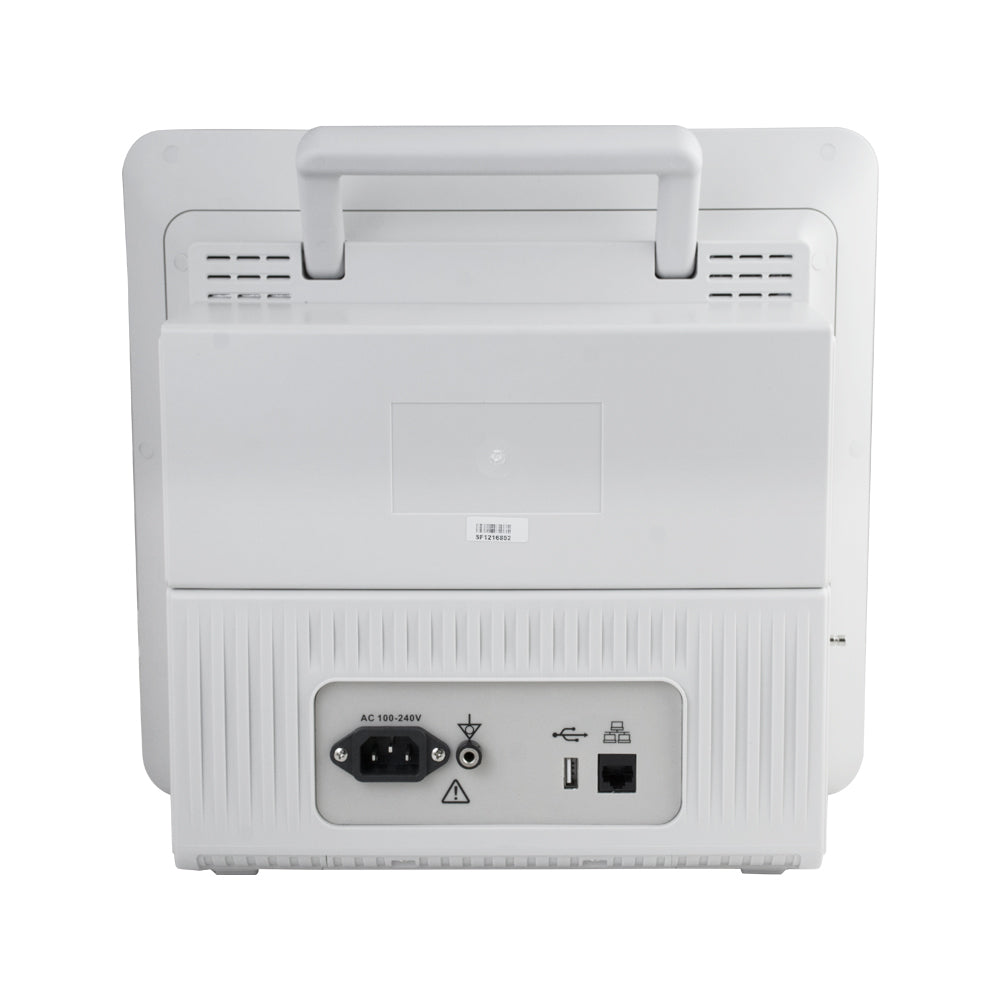

15 Inch Multi-parameter LCD Display Modular Plug-in Patient Monitor ECG NIBP RESP TEMP SPO2 PR

• Versatile Monitoring: Adaptable to adult, pediatric, and neonatal usage, monitoring vital signals including ECG, Respiratory Rate, SpO2, NIBP, TEMP, and IBP.
• User-Friendly Interface: 12" high-resolution color TFT LCD display for easy operation and convenience.

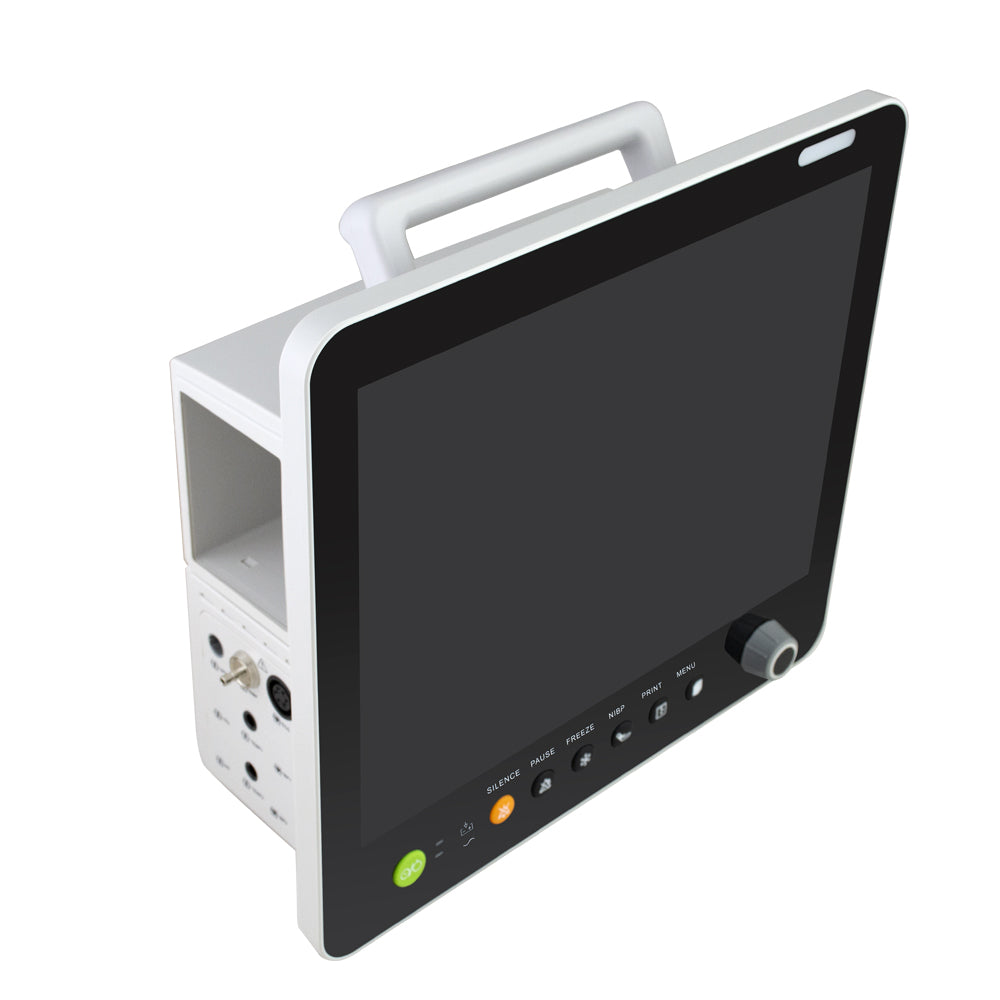

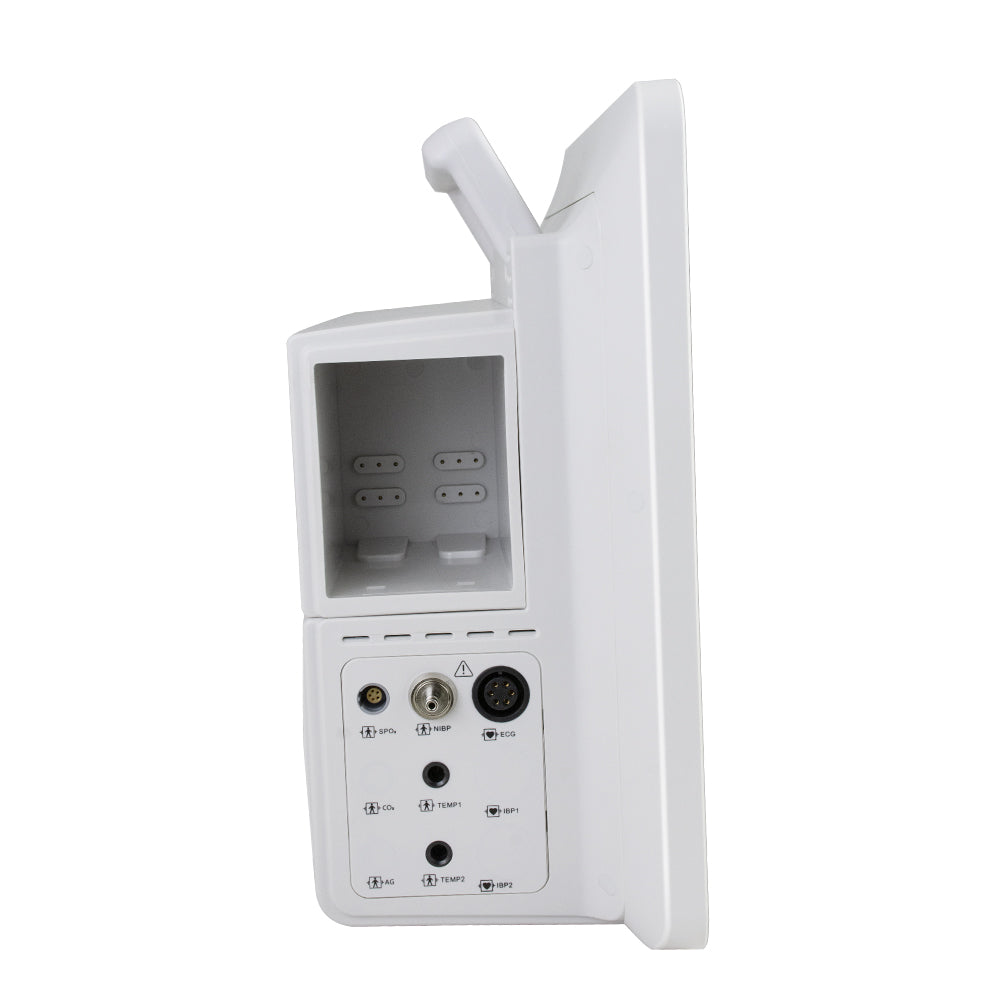

• Flexible Configuration: Modular design allows flexible and convenient configuration to meet departmental requirements.
• Multilingual Support: Supports up to 16 languages for accessibility across diverse healthcare settings.
• Advanced Functions: Includes drug solubility calculation and Arrhythmia analysis functions for comprehensive patient assessment.
• Network Connectivity: Easily connects to central monitoring systems via wired or wireless networks for seamless integration.

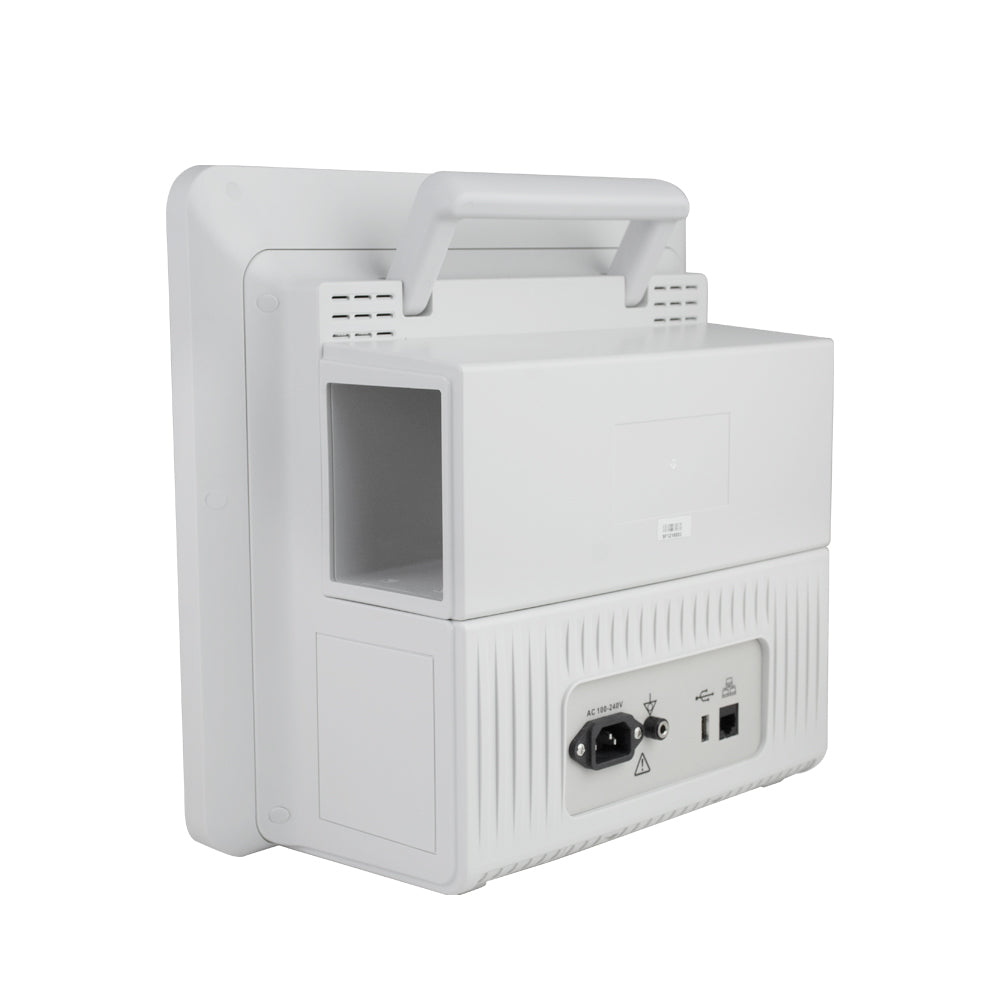

• Long-lasting Power: Built-in lithium battery, AC, and DC power options ensure continuous monitoring even after power failures.
• Wide Application: Widely used in various medical departments including internal medicine, dental practices, surgery centers, obstetrics, pediatrics, emergency, ICU, and CCU.

Standard parameters:ECG, RESP, NIBP, SPO2, TEMP, PR.

Optional:Dual IBP , CO2 , CSM module , Gas

Specifications:

ECG

Lead Mode:5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection:I, II, III, avR, avL, avF, V,

Waveform:2 ch

Lead mode:3 Leads ( R, L, F or RA, LA, LL)

Lead selection:I, II, III,

Waveform:1 ch

Gain:´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV, auto

HR and Alarm

Range:

Adult:15 ~ 300 bpm

Neo/Ped:15 ~ 350 bpm

Accuracy:± 1% or ± 1bpm,which great

Resolution:1 bpm

Sensitivity:> 200 (uV P-P)

Differential Input Impedance:> 5 MΩ

RESPARATION:

Method:Impedance between R-F(RA-LL)

Differential Input Impedance:>2.5 MΩ

Measuring Impedance Range:0.3~5.0Ω

Base line Impedance Range:0 – 2.5  KΩ

Bandwidth:0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult:0 ~ 120 rpm

Neo/Ped:0 ~ 150 rpm

Resolution:1 rpm

Accuracy:±2 rpm

Apean Alarm:10 ~ 40 S

NIBP

Method:Oscillometric

Mode:Manual, Auto, STAT

Measuring Interval in AUTO Mode

 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode:5 Min

Pulse Rate Range:40 ~ 240 bpm

Alarm Type:SYS, DIA, MEAN

Measuring and alarm range:

Adult Mode

SYS :40 ~ 270 mmHg

DIA :10 ~ 215 mmHg

MEAN:20 ~ 235 mmHg

Pediatric Mode

SYS:40 ~ 200 mmHg

DIA:10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS:40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Overpressure Protection

Adult Mode:297±3 mmHg

Pediatric Mode:240±3 mmHg

Neonatal Mode:147±3 mmHg

SpO2

Measuring Range:0 ~ 100 %

Alarm Range:0 ~ 100 %

Resolution:1 %

Accuracy:

70% ~ 100%  ±2 %

0%  ~  69%  unspecified

Actualization interval:about 1 Sec.

Alarm Delay:10 Sec.

Pulse Rate

Measuring and Alarm Range:0~254bpm

Resolution:1bpm

Accuracy:±2bpm

I.5TEMP measurement:

Channel:1

Measuring and Alarm Range:0 ~ 50 °C

Resolution:0.1°C

Accuracy:±0.1°C

Actualization interval:about 1 Sec.

Average Time Constant:< 10 Sec.

Package List:

1×Patient Monitor

1×EKG Lead wire

1×NIBP Cuff

1×NIBP Extension Cable

1×SpO2 Sensor

1×Temp Sensor

1×Ground Cable

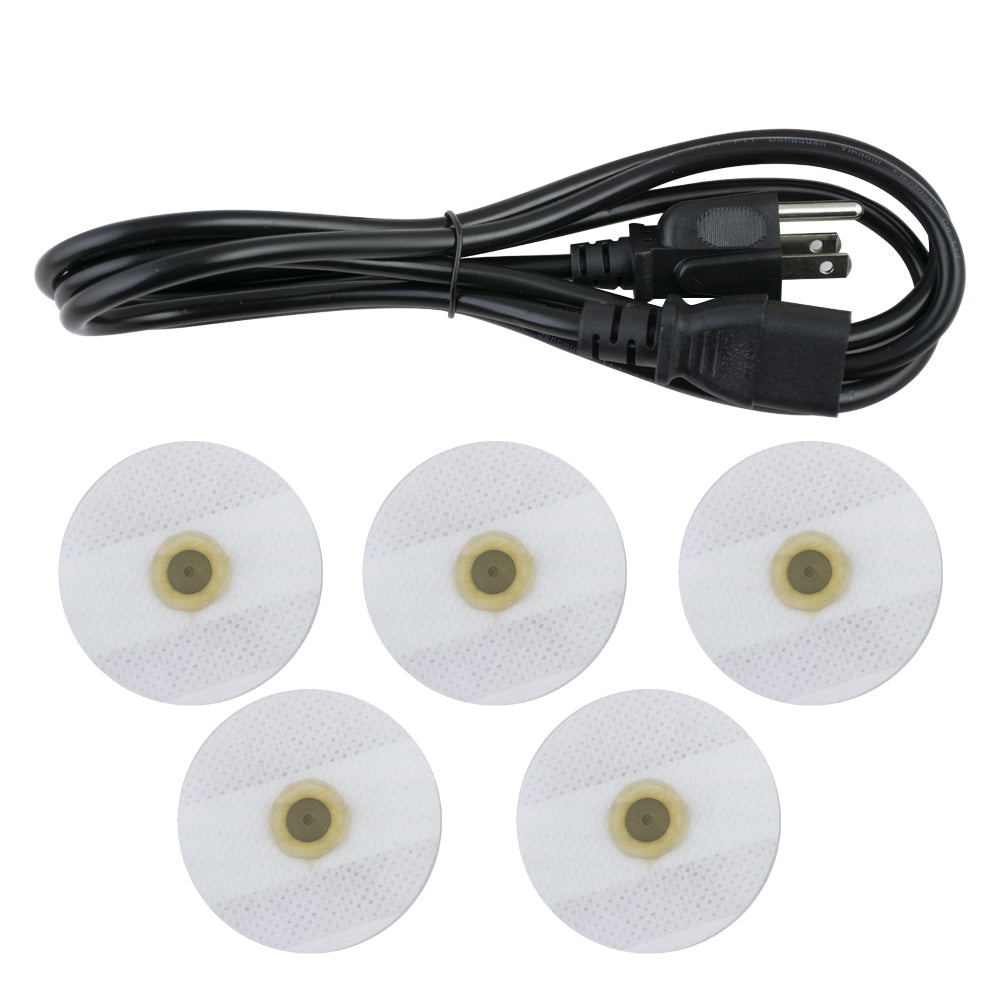

5×Electrode

1×User Manual
