Description
Introduction

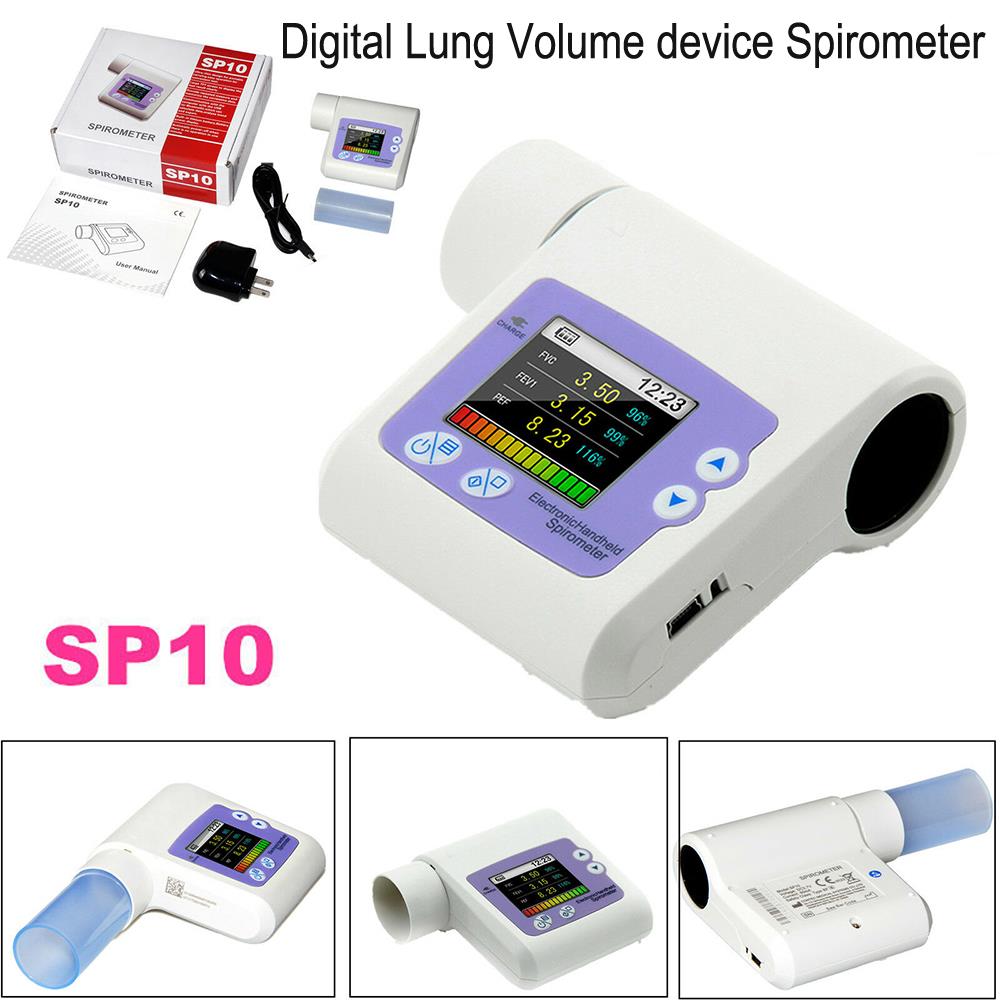

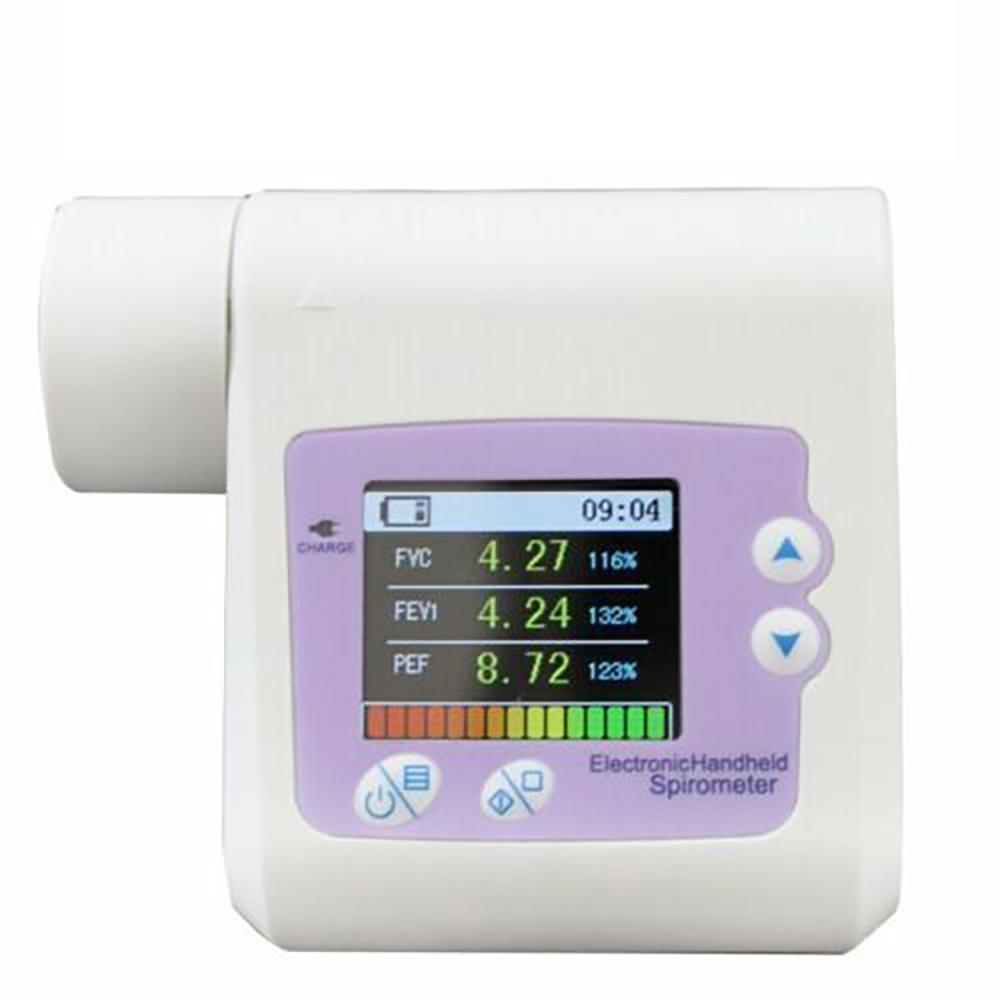

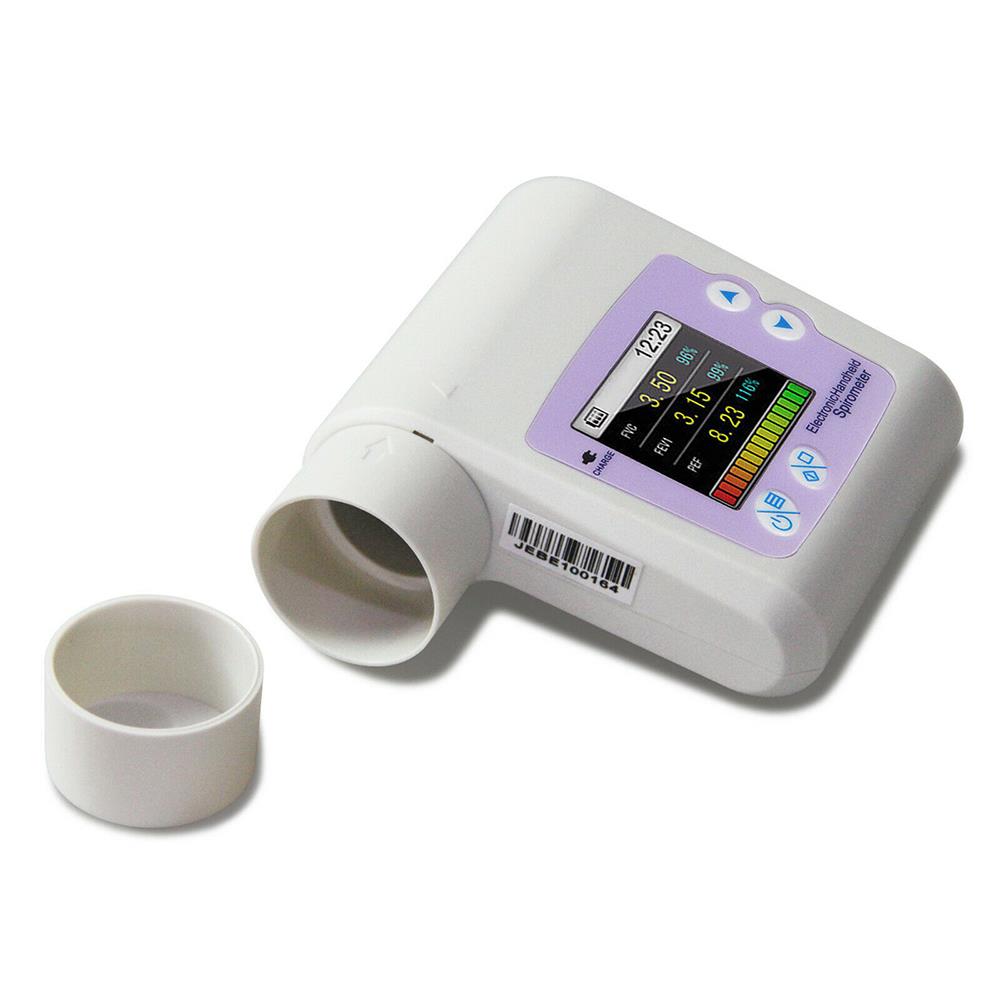

SPIROMETER is a hand-held equipment for checking lung conditions, adopts the infrared mode for measuring relative items, and is applicable for hospital, clinique for routine test.
Features
Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), the ratio of FEV1 and FVC (FEV1%), Peak expiratory flow (PEF), 25% flow of the FVC (FEF25), 75% flow of the FVC(FEF75) and average flow between 25% and 75% of the FVC(FEF2575) can be measured. Besides, the testee condition can be shown by the ratio of the measured value and the predicted value. Flow rate-volume chart, volume-time chart display. Data memory,delete, upload and review. Trend chart display. Scaling(Calibration). Information prompts when volume or flow goes beyond the limits. Automatic power off when there is no operation in one minute. Rechargeable lithium battery and with charging tips. Battery power display.
Performance
Display mode: 1.8'' color LCD Display resolution: 160*128 Volume range: 0~10L Volume accuracy: ±3% or 0.05L (whichever is greater) Flow range: 1 L/S ~16L/S Flow accuracy: ±10% or ±0.3L/s(whichever is greater) Working current: 60 mA Power supply: DC3.7V rechargeable lithium battery Safety classification: internally powered equipment, type BF applied part
Physical characteristic
Dimension: 97mm(L)× 89mm(W)×36mm(H) Weight: 150g
Package included

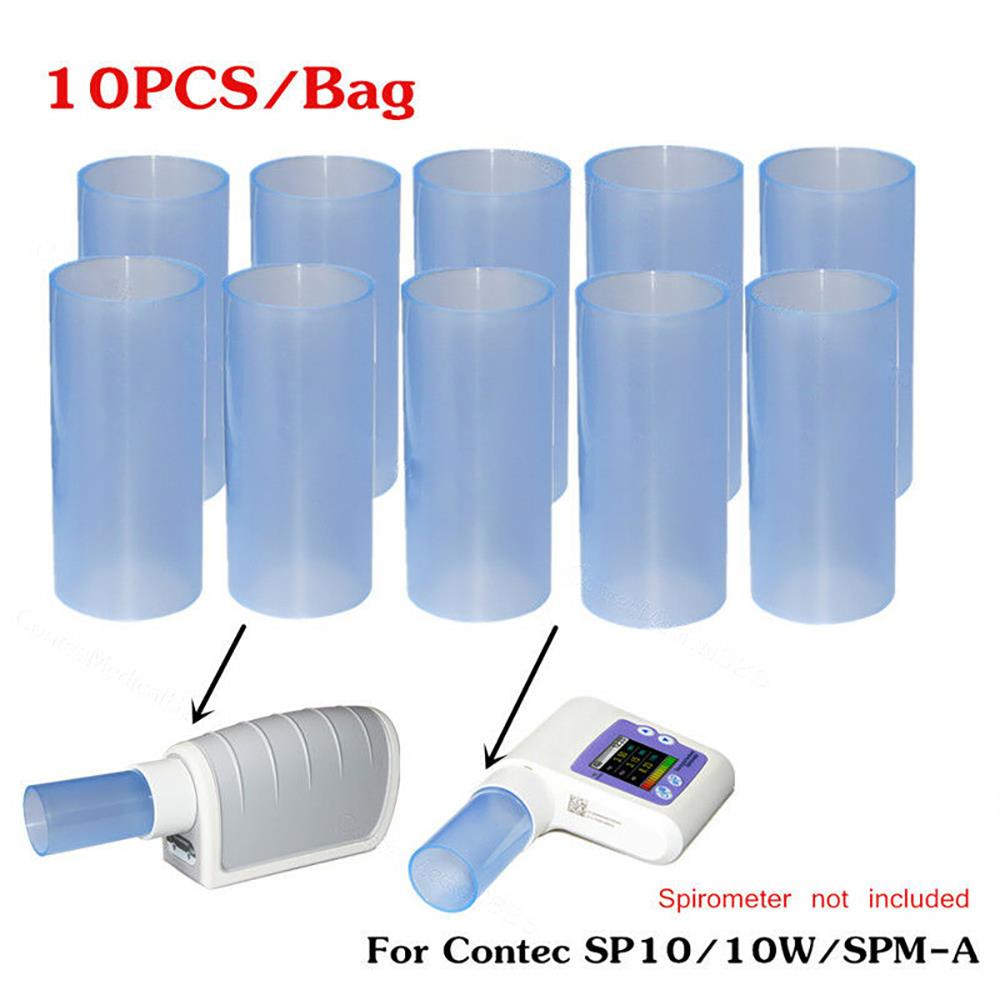

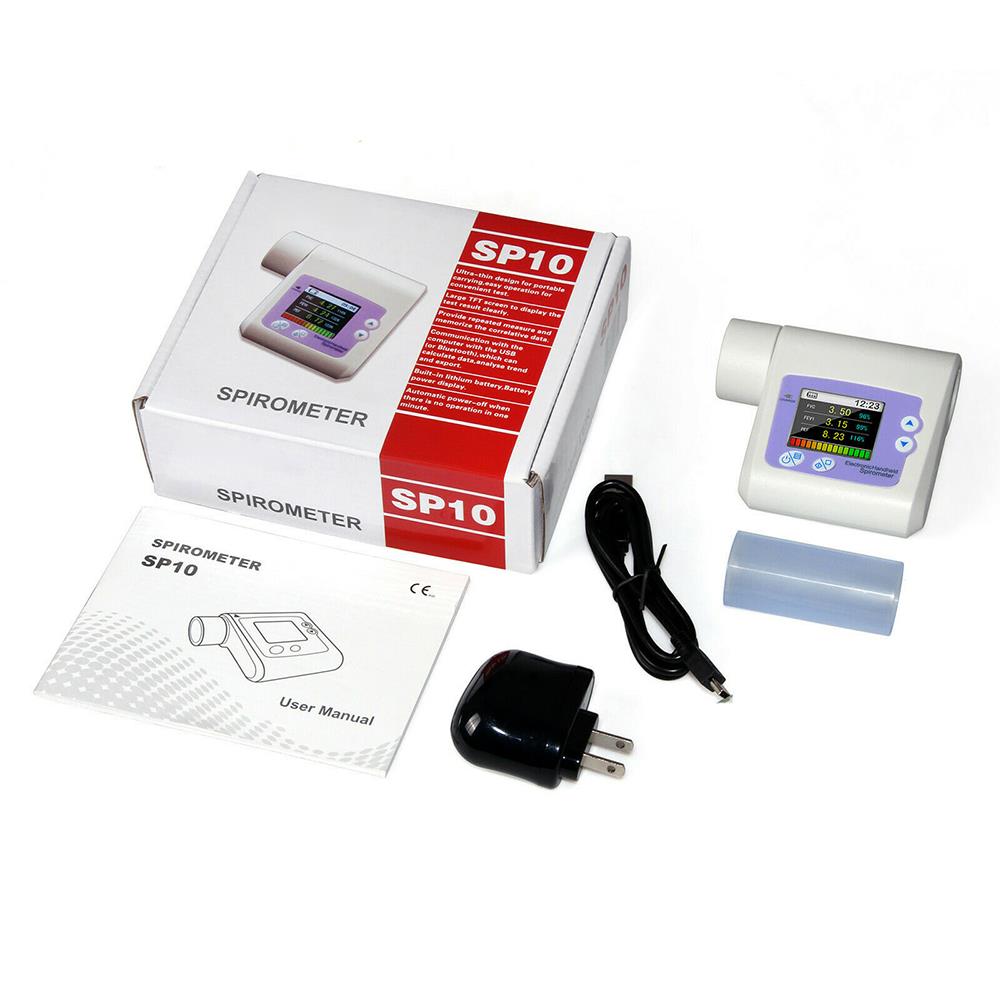

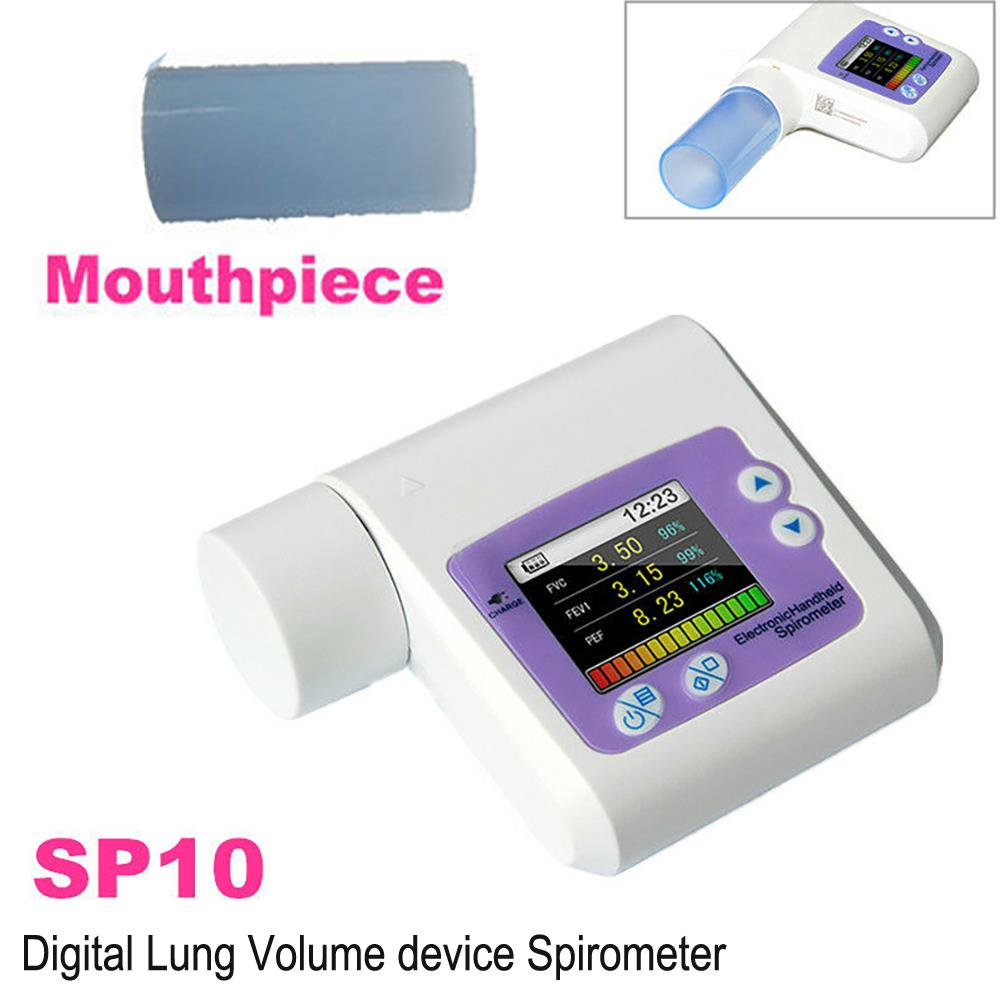

1X SP10 Digital Lung Volume device Spirometer 1X USB data line 1XMouthpiece 1X Power adapter 1X User Manual
Optional
A nose clip more (Package not included,if you need it,please contact us by message.)
